Did you Know?

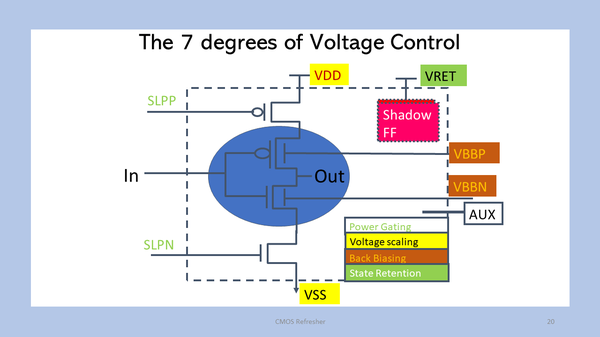

There is a lot of confusion about multi-voltage in the industry. An island is a block of logic which can be controlled up-to 7 ways with different electrical controls, as shown. (More are possible as AUX indicates).
Any variation in an islands electrical connections across the die/system and any variation in time on the power supplies connected to these islands is multi-voltage design.
Multi-voltage design comes in many flavors, all of which can be expressed using this island concept :
Examples :
- Multi-VDD
- Dynamic Voltage (and Frequency) scaling
- Standby/Sleep States
- Power Gating
- Retention/Balloon latches
- Body Bias
There are many such low power fundamentals, which will be covered as a part of "5-day Low Power Design Workshop" happening between 14th-18th July, and industry is widely open for candidates with low power profile.
Registration at Academic Pricing (85% discount) closes in next 12hrs. Here's the link:
All the best and happy learning
