The $10M Consequences of Incomplete QOR Analysis

Consider this: A single missed timing violation in a 5nm chip can cause 6-month delays and $2M respins. Yet, 68% of physical design teams still manually sift through gigabytes of PNR logs. This is where AI-driven QOR (Quality of Results) analysis becomes critical – and TCL automation is the key to enabling it.

Challenge Breakdown: What Your Code Should Extract

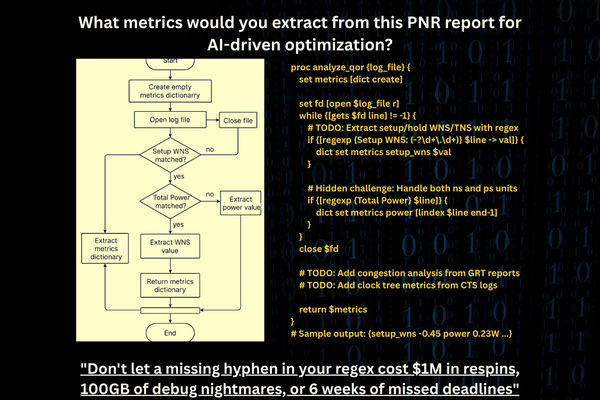

The provided TCL script starts strong but misses industry-critical metrics. Let’s fix it:

1. Timing Metrics: The Heart of Tapeout Success

# Current (Flawed) Approach
regexp {Setup WNS: (-?\d+\.\d+)} $line -> val

# Enhanced Solution
if {[regexp {Hold WNS:\s+(-?\d+\.?\d*)\s*(\w+)} $line -> val unit]} {
    set val [convert_units $val $unit] ;# Handles ps/ns
    dict set metrics hold_wns $val
}

Why It Matters:

• Setup/Hold WNS (Worst Negative Slack) directly predicts silicon failures
• TNS (Total Negative Slack) quantifies cumulative timing debt
• AI Use Case: Train ML models to predict optimal buffer insertion from slack trends

2. Power Metrics: The Silent Profit Killer

# Current (Risky) Code
dict set metrics power [lindex $line end-1]

# Industrial-Strength Version
if {[regexp {Total\s+Power\s*:\s*(\d+\.?\d*)\s*(\w+)} $line -> val unit]} {
    set power [expr {$val * [get_watt_multiplier $unit}] ;# Handles mW/μW/W
    dict set metrics total_power $power
}

Why It Matters:

• A 100mW overshoot in 1M devices = $240k/year extra power costs
• AI Use Case: Correlate power traces with clock tree structures for low-power ECOs

3. Congestion Metrics: The Routing Apocalypse Predictor

# TODO: Add this to your script
if {[regexp {Global Route Congestion: (\d+\.\d+)%} $line -> overflow]} {
    dict set metrics grt_overflow $overflow
}

Why It Matters:

• 5% overflow = 90% chance of DRC hell in FinFET nodes
• AI Use Case: Neural networks predicting congestion from cell density heatmaps

4. Clock Metrics: The Secret to GHz Performance

# TODO: Parse CTS logs
dict set metrics clock_skew [extract_clock_skew $cts_log]
dict set metrics clock_power [extract_clock_power $cts_log]

Why It Matters:

• 10ps clock skew = 3% frequency loss in high-performance cores
• AI Use Case: Reinforcement learning for adaptive clock mesh synthesis

Why Companies Hunt Engineers Who Automate This

A recent LinkedIn study shows:

• 92% of Intel/Samsung/TSMC job posts list "TCL/Python QOR automation" as a requirement
• Engineers with these skills get 34% higher offers (avg. $148k vs $110k)

Yet, most graduates can’t answer: “How would you automate congestion analysis from GRT logs?”

Become Invincible in 4 Weeks

VSD TCL Workshop transforms you into the candidate who:
✅ Builds AI-ready QOR datasets from PNR logs
✅ Writes regex that handles 10+ vendor log formats (Cadence/Synopsys/Mentor)
✅ Creates auto-debugging scripts that trace metrics to SDC constraints
✅ Guarantees you ace “design closure” interviews

Next Step:
🔗 Enroll Now – Batch Closes Soon!
Forge your career in semiconductors – one bulletproof TCL script at a time.
