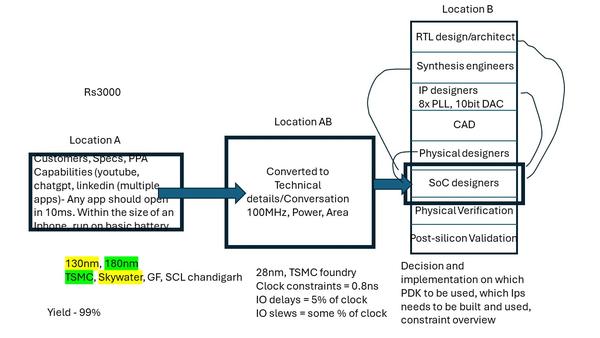

Product Cycle Overview

Location A: Customer Requirements and PPA Capabilities

• Inputs:
  • Customer requirements: Need for multiple apps (e.g., YouTube, ChatGPT, LinkedIn) to open within 10ms.
  • Constraints: Fit within the size of an iPhone, run on a basic battery.
  • Performance, Power, Area (PPA) capabilities.
• Output: Technical details and conversations focused on frequency (100MHz), power consumption, and area constraints.

Location AB: Conversion to Technical Details

• The requirements are translated into specific technical parameters:
  • Clock constraints: 0.8ns.
  • IO delays: 5% of the clock period.
  • IO slews: Some percentage of the clock period.

Location B: Design and Implementation

• RTL Design/Architect: Develops the register-transfer level (RTL) architecture.
• Synthesis Engineers: Convert the RTL design into a gate-level netlist.
• IP Designers: Design specific intellectual property (IP) blocks, such as 8x PLL and 10-bit DAC.
• CAD: Uses computer-aided design for layout and optimization.
• Physical Designers: Focus on the physical layout of the chip.
• SoC Designers: Integrate various IP blocks and design elements into a cohesive system-on-chip (SoC).
• Physical Verification: Ensures the physical layout meets design rules and specifications.
• Post-Silicon Validation: Validates the chip's performance and functionality after fabrication.

Role of SoC Designers

• Integration: SoC designers are crucial in integrating various IP blocks and design elements into a single SoC, ensuring seamless functionality.
• Design Implementation: They make decisions on which process design kit (PDK) to use and which IPs need to be incorporated.
• Constraint Management: They manage design constraints related to power, performance, and area, ensuring the SoC meets required specifications and operates efficiently.

Manufacturing Process and Yield

• The manufacturing process involves various technology nodes (e.g., 130nm, 180nm) and foundries (e.g., TSMC, Skywater, GF, SCL Chandigarh).
• The yield, indicating the percentage of functional chips produced, is targeted at 99%.

Summary

The product cycle involves translating customer requirements into technical specifications, designing various components, and integrating them into a complete SoC. SoC designers play a pivotal role in integrating different IPs, managing design constraints, and ensuring the overall functionality and performance of the chip.
